Bircher&Calmark

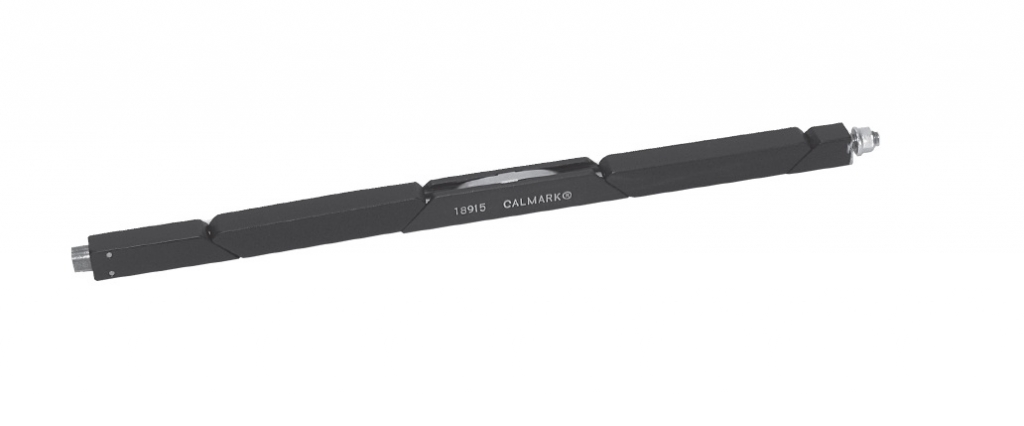

Card-Lok Series 224
모델명
:
Series 224
CATALOG
Series 224
Catalog Number:224
For cold wall applications
Screw actuated, torque limiting
5 segment, non-shafted design
Profile 5.33 mm (.210 in) x 7.24 mm (.285 in)
Min expansion 8.26 mm (.325 in)
Lengths 96.5 mm (3.8 in) to 325 mm (12.8 in), 12.7 mm (0.5 in) increments
Weight 1.12 g/cm (.100 oz/in)
Flexible mounting options
Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating
Clamp force, thermal transfer, life cycle and environmental (MIL 810) test results available
Each unit tested at factory prior to shipment to ensure performance; customer provided with a certificate of conformance
